Reuse.

• Reuse is a well established software engineering practice.

• Invisible XML grammars are software engineering.

• Therefore, Invisible XML needs a reuse mechanism.

There are lots (and lots) of grammars that only need to be defined once and then reused: ISBN numbers, IPV6 addresses, URIs, credit card numbers, etc., etc., etc.

• Steven Pemberton introduced a modularity proposal at MarkupUK 2025. Some of the syntax choices in this proposal are inspired by Steven’s choices.

• Sheila Thomson reminded me that (a) I opened the original issue about reuse and that (b) Michael Sperberg-McQueen commented on it.

• Michael’s comments point to RELAX NG as a potential model and I think he was absolutely correct.

The author writing the grammar that’s doing the including is in control.

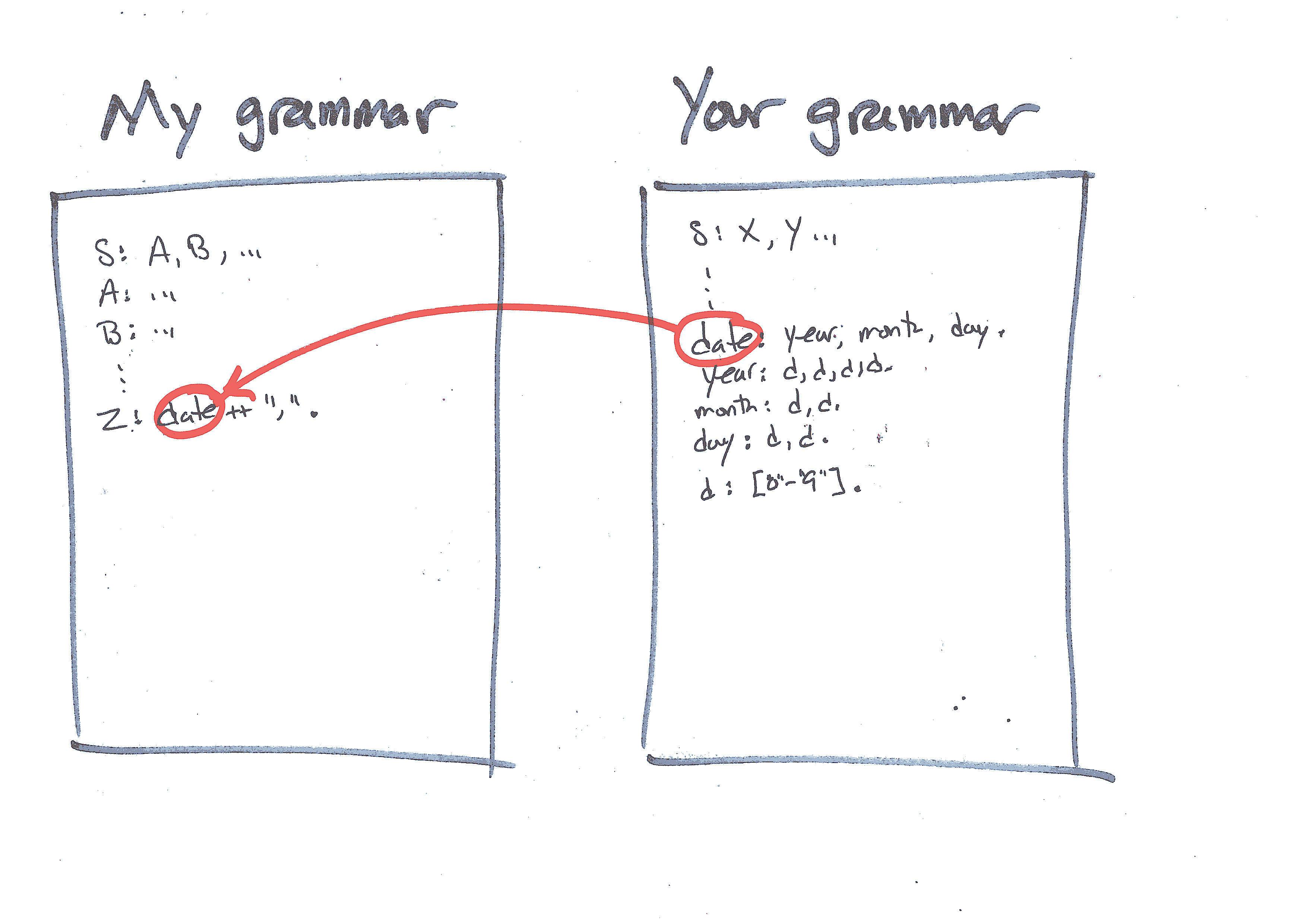

1. A grammar author must be able to include rules from one or more other grammars.

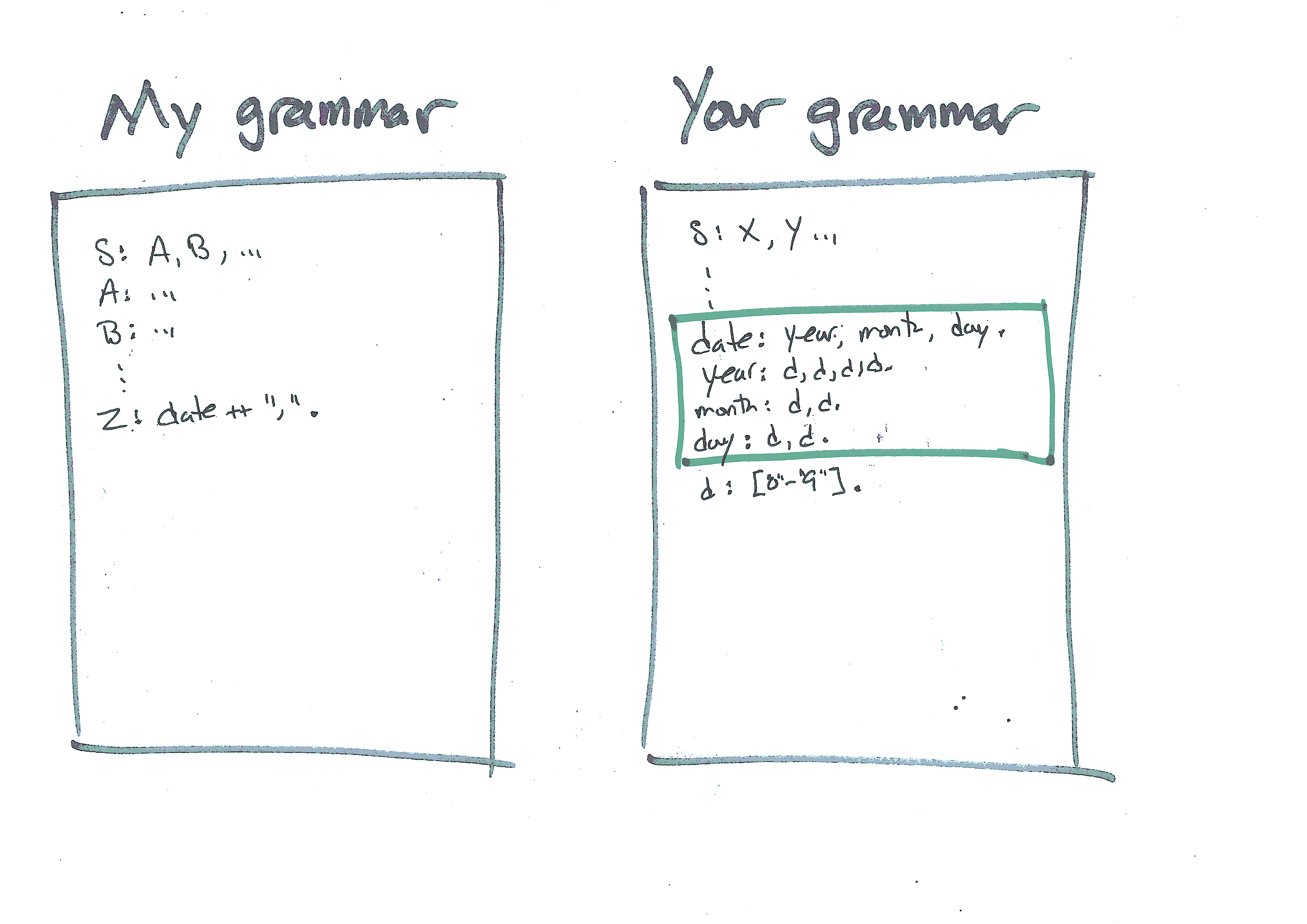

2. A grammar author must be able to define a public interface which specifies the nonterminals they expect to share.

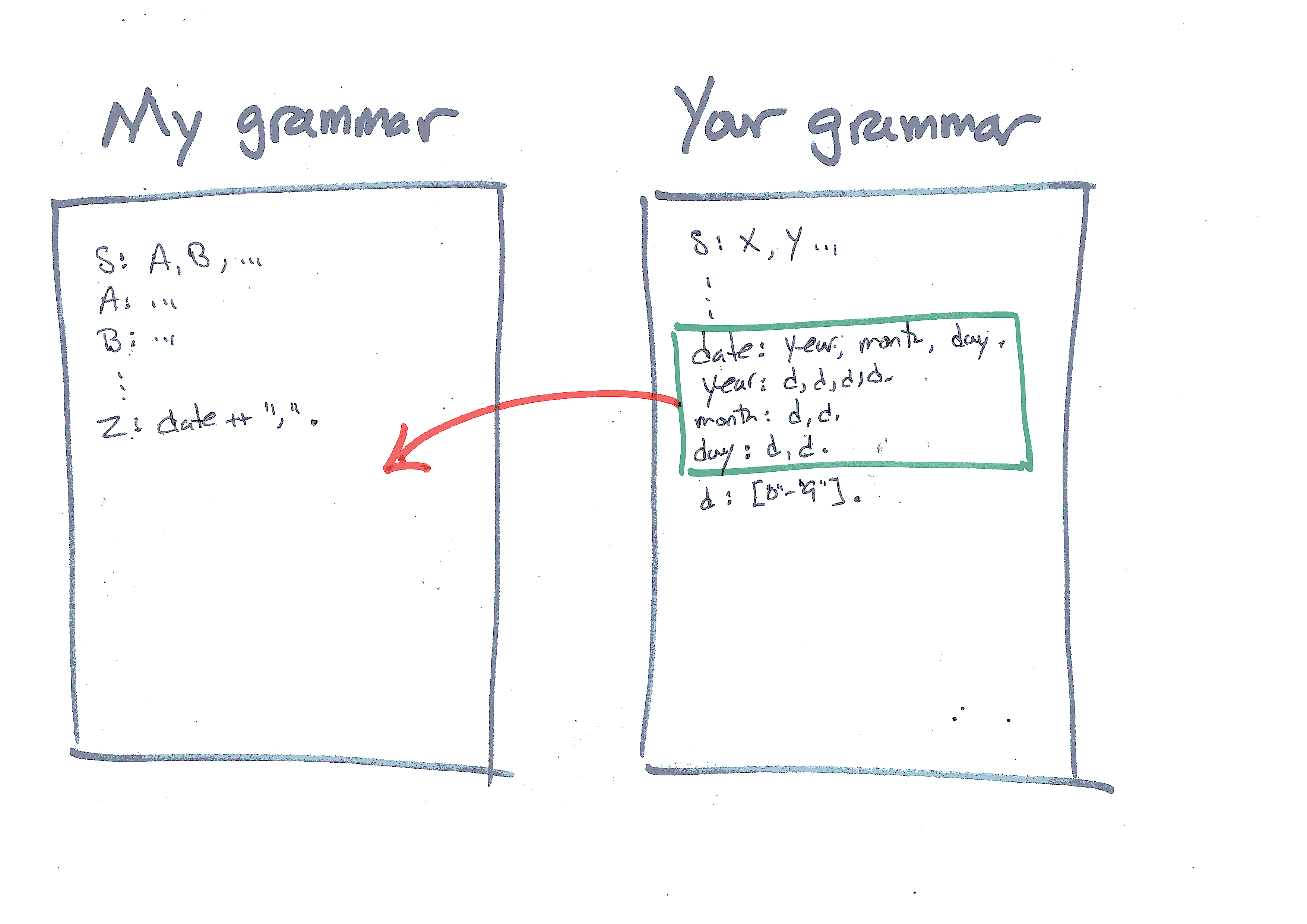

3. It should be convenient to include all of the rules that are in the public interface and no others.

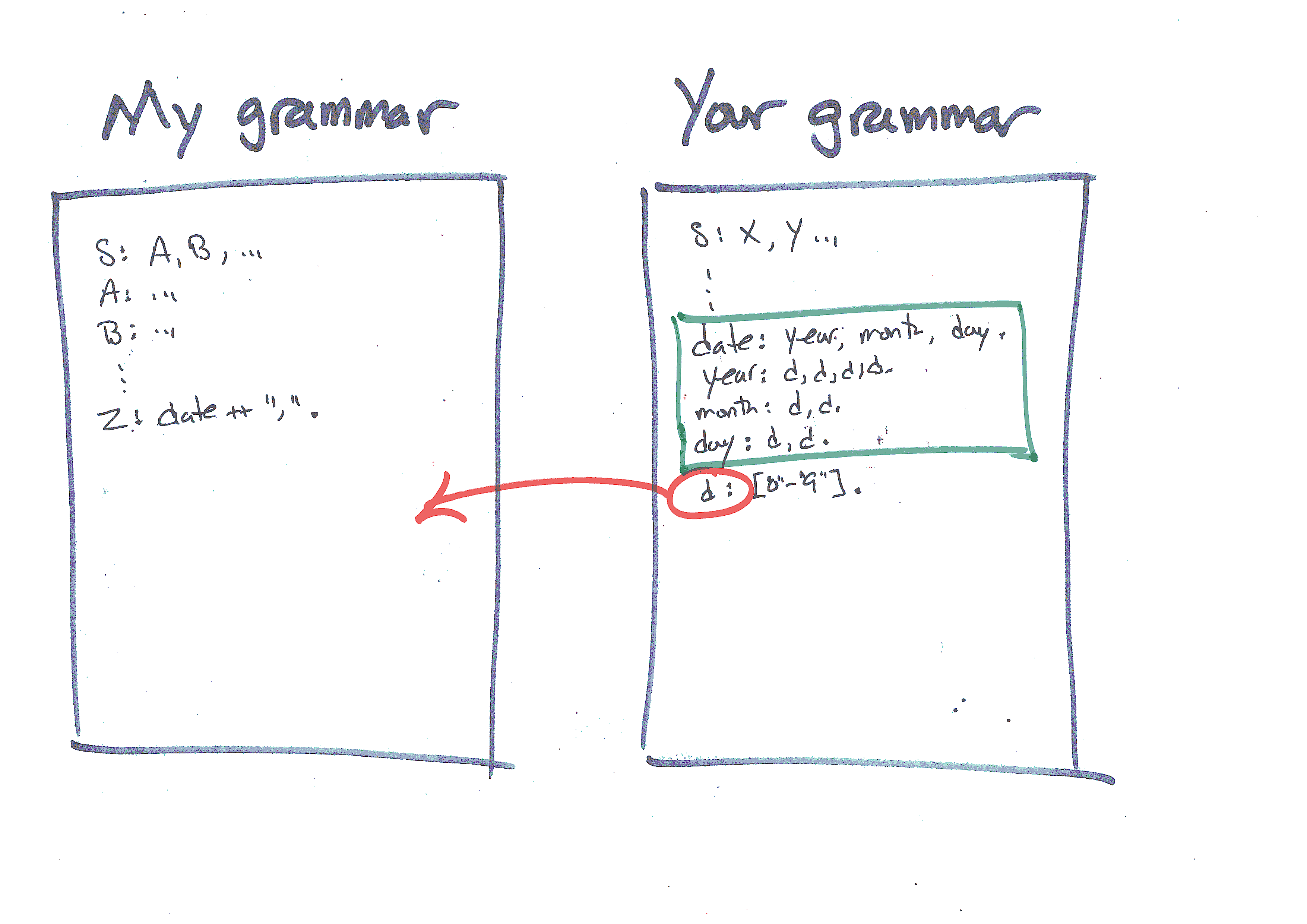

4. It should be possible to include any rule from a grammar. Ultimately, the including grammar is in control.

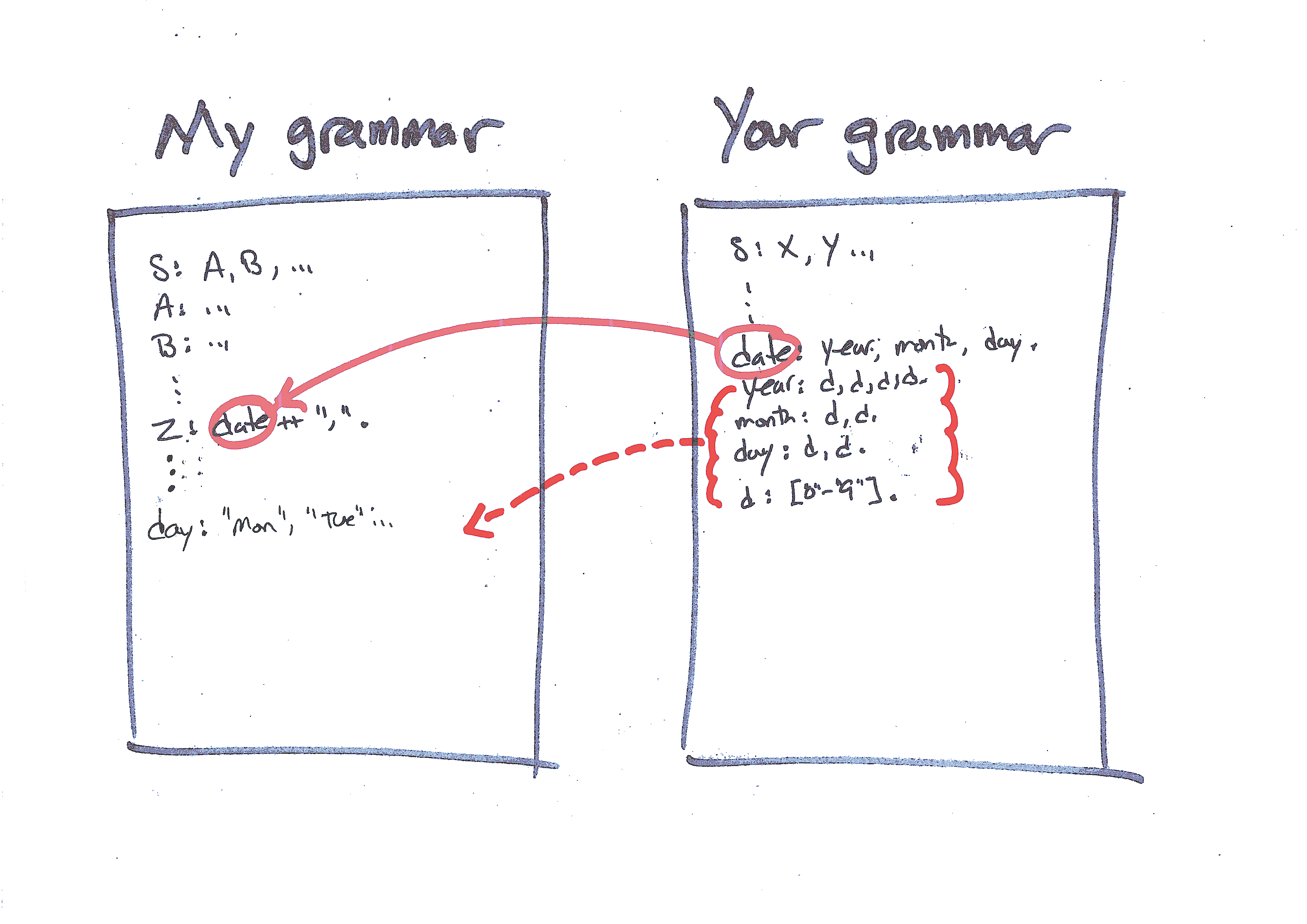

5. Including a nonterminal from another grammar does not change its definition.

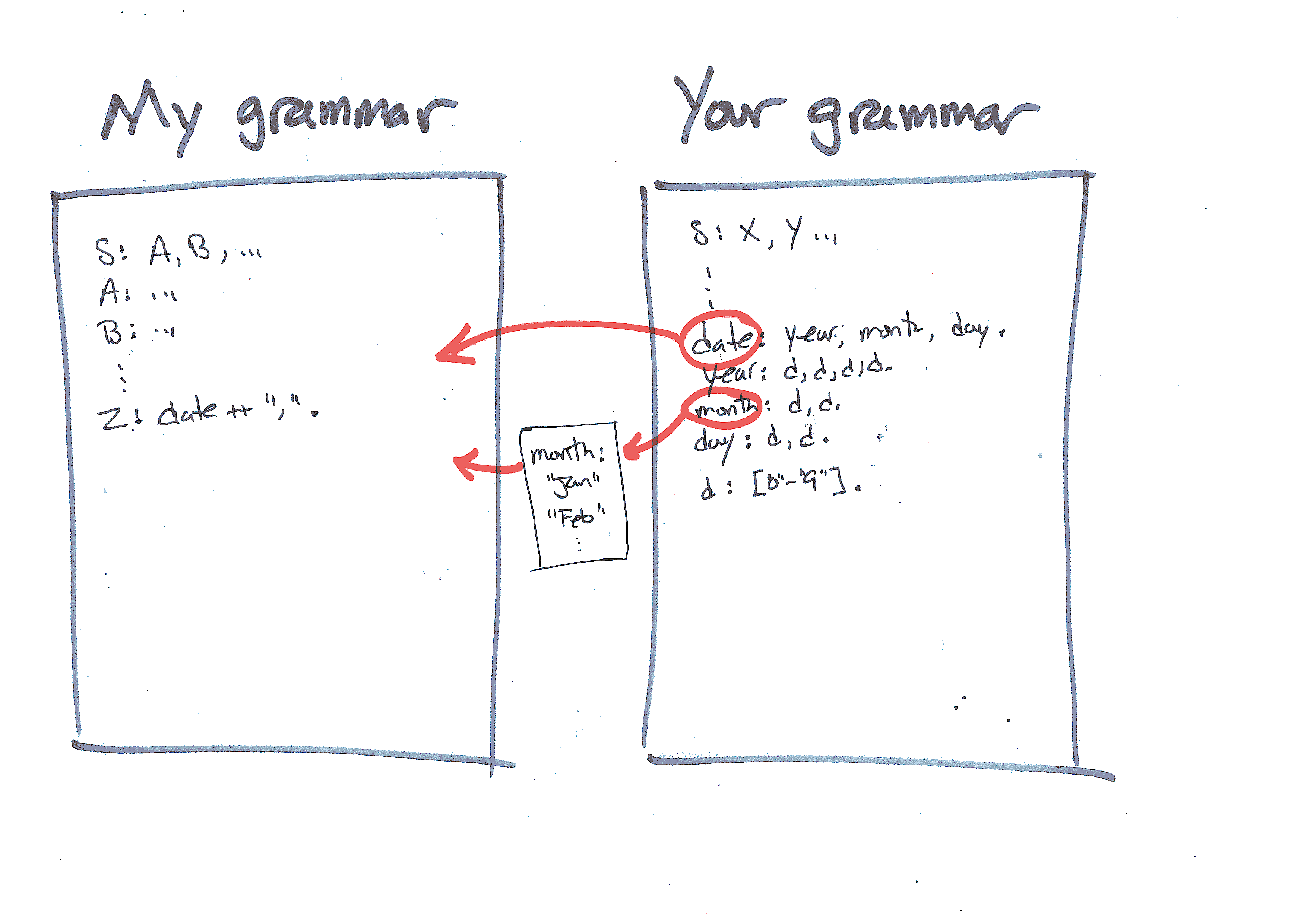

6. It must, however, also be possible to redefine any nonterminal in the included grammar.

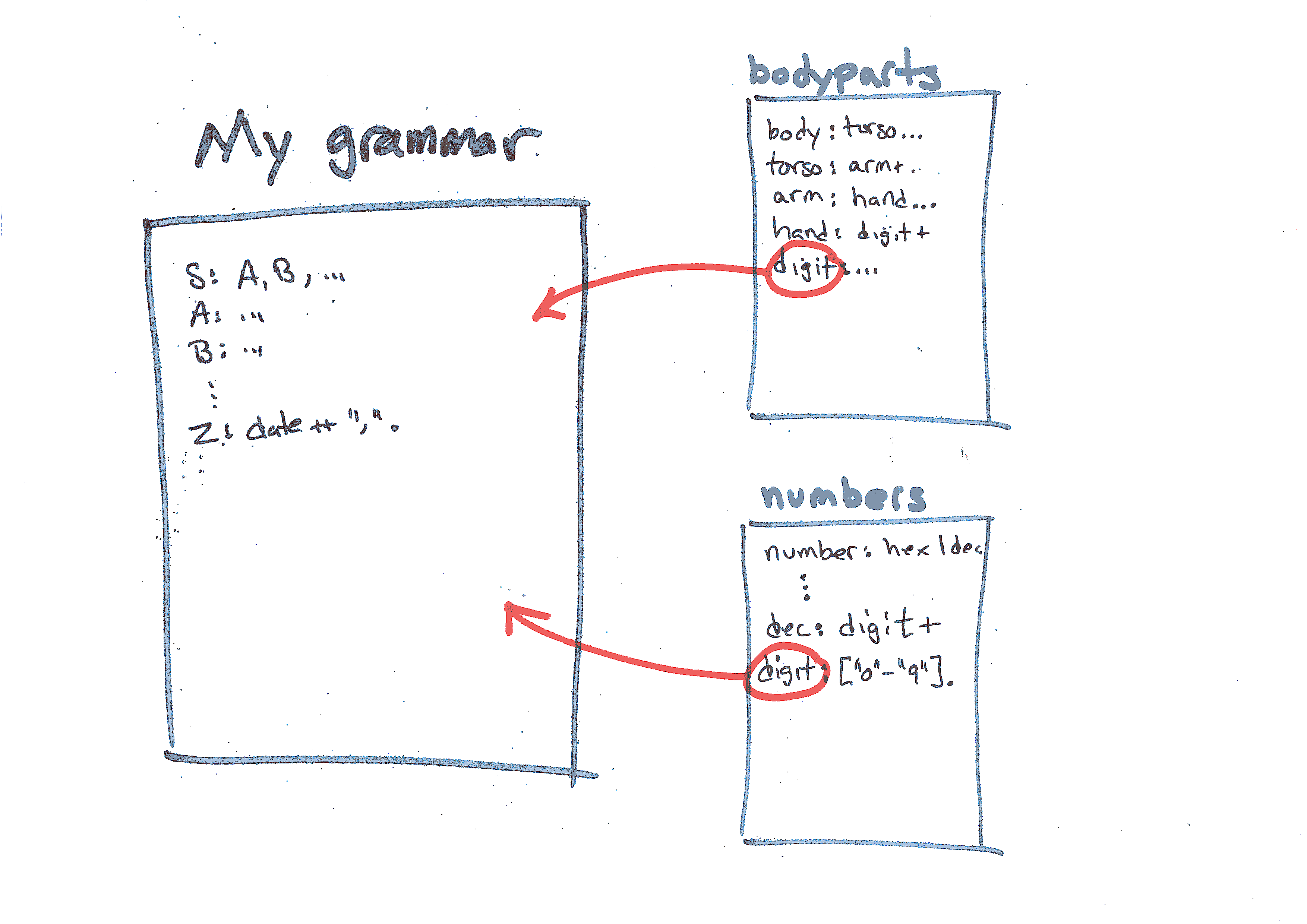

7. It must be possible to disambiguate the names of included nonterminals.

(It must be possible to include the “digit” nonterminal from bodyparts.ixml and the “digit” nonterminal from numbers.ixml into the same including grammar.)

sentence = "The", animal, verb, pphrase, punct .
  animal = -" ", ("cat" | "bat" | "rat") .
    verb = -" ", ("sat" | "spat") .
 pphrase = prep, " the mat" .
    prep = -" ", ("in" | "on" | "at") .
   punct = "." | "!" .

“The cat sat on the mat.”

“The bat spat on the mat!”

etc.

   book = chapter++(-#a, -#a), -#a* .
chapter = number, -". ", para++-#a .
   para = sentence++" " .
@number = [N]+ .

This grammar parses books like this one:

1. The cat sat on the mat.
The rat spat at the mat.

2. The bat sat in the mat.

Modularity operates on the grammar models, not on their surface syntax.

Declare your public interface with +share:

+share foo, bar, baz

If you don’t declare one, it defaults to the whole grammar.

include all the public nonterminals with +include:

+include "sentence.ixml"

The included grammar must be a valid iXML grammar in its own right.

Selectively include nonterminals:

+include animal, verb from "sentence.ixml"

Rename included nonterminals:

+include animal from "sentence.ixml"
+include animal as muppet from "muppets.ixml"

Redefine included nonterminals:

+include sentence from "sentence.ixml" (
  animal |= -" ", "gnat" .
  pphrase = prep, object .
  object = -" ", "the", (animal | thing) .
)
-S = sentence.
thing = -" ", ("mat" | "hat" | "vat") .

“The gnat sat in the vat!”

(There are some additional constraints about reachable and unreachable nonterminals.)

sentence = "The", animal, verb, pphrase, punct .
  animal = -" ", ("cat" | "bat" | "rat") .
    verb = -" ", ("sat" | "spat") .
 pphrase = prep, " the mat" .
    prep = -" ", ("in" | "on" | "at") .
   punct = "." | "!" .

Consider this grammar:

+share table

table = row+ .

row = (-'|', cell)+, -'|', nl .
cell = cell-content .
-nl = -#a .

If cell-content is ["x"|"o"], then this grammar parses tables like this one:

|x|o|x|
|o|o|x|
|x|o|x|

But it doesn’t work.

Allow grammars to declare redefined nonterminals?

+require cell-content
+share table

table = row+ .

row = (-'|', cell)+, -'|', nl .
cell = cell-content .
-nl = -#a .

Can you include the same grammar more than once? If you redefine parts of it?

+include table as word-table from "table.ixml" (
  cell-content = [L]+ .
)
+include table as number-table from "table.ixml" (
  cell-content = ["0"-"9"]+ .
)

page = (para | word-table | number-table) ++ nl, nl? .
para = [L | " "]+, nl .

• The full proposal is available, with test cases:

  • https://nineml.org/proposals/2026/modularity

• This presentation is also available:

  • https://nineml.org/presentations/ixml-2026/modularity

• The proposal is implemented in NineML version 3.3.7. (Which was released on Tuesday 🙂)

• Steven’s proposal is also implemented.

• (And so is my proposal for the repetition issue, but we’re not talking about that today.)

Thank you very much. Questions or discussion?
